Products Description

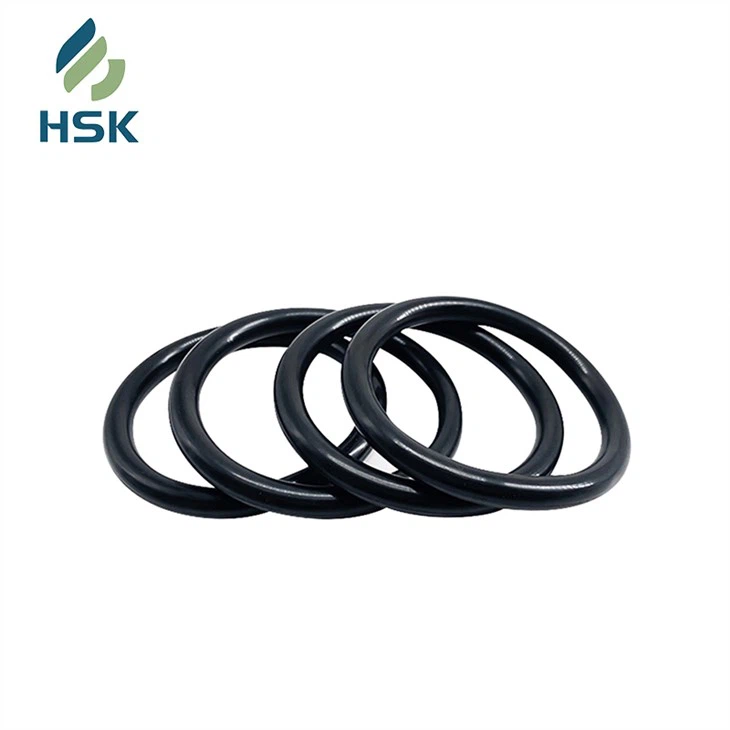

HNBR hydrogenated nitrile butadiene rubber O-ring, is made of hydrogenated butadiene rubber material O-ring, product specifications have HNBR hydrogenated butadiene rubber O-ring, hydrogenated butadiene rubber sealing ring, hydrogenated butadiene rubber rectangular ring, hydrogenated butadiene rubber V-ring, hydrogenated butadiene rubber Y-ring, hydrogenated butadiene rubber U-ring, etc.

In recent years, the drilling of oil and gas Wells is deeper and deeper, the temperature is higher, the working environment is more severe, the fluorine rubber seal is easy to damage in such an environment. Under high temperature and high pressure large effect on the capabilities of the rubber is the medium of H2S, CO2, diesel, corrosion inhibitors and vapor and acids, and HNBR hydrogenated nitrile rubber o-rings can have very good tolerance of the above chemical medium, especially suitable for production of oil Wells, gas Wells, drilling management, embolism, valve seal, piston pump, power cable sheath, Rotary rubber hose and other rubber parts. The radiation resistance of hydrogenated butadiene rubber ring is better than that of silicone rubber, fluorine rubber and polytetrafluoroethylene. It is also suitable for various rubber seals in nuclear power plants.

HNBR hydrogenated nitrile rubber o-rings has good chemical resistance and heat resistance, suitable for the production of various kinds of industrial rubber roller, especially the oil resistance and abrasion resistance was very excellent ZSC more compelling, ZSC even hardness more than 90 degrees, its processing is also very low viscosity, easy molding, than the strength of the polyurethane rubber, water resistance, oil resistance has a big improvement, Suitable for high hardness rubber roller material, such as printing cots, industrial cots, etc.

In addition to the above uses, hydrogenated butadiene rubber can also be used as fenders, vibration absorption materials, cables, etc. HNBR latex can be used as a surface coating, as a binder for paper, leather, ceramics and fibers, as well as foamed rubber and impregnated latex products. HNBR can also be used as compatibilizer in ABS/PVC blend system. Adding HNBR in ABS/PVC blend has excellent tensile strength performance. The toughness of PVC/EVA can be improved by mixing PVC/EVA with HNBR. HNBR used as a plastic additive, can improve the impact resistance of plastic, aging resistance and oil resistance, such as PVC/HNBR has high heat resistance air aging performance and heat aging performance in fuel; HNBR/PC has high strength, good machining performance and good thermal stability; The addition of EPDM to HNBR can greatly improve the oil resistance. These blending modification technologies open up a new field for the application of HNBR.

Usually, the higher the content of clear base in butadiene rubber, the higher the glass transition temperature and the worse the cold resistance. The glass transition temperature of hydrogenated butadiene rubber is not only affected by the content of chloryl, but also related to the iodine value (hydrogenation rate). When the content is less than 34%, the glass transition temperature increases with the increase of hydrogenation rate. However, with the increase of hydrogenation rate, the glass transition temperature does not change obviously when the content of clear base is high. According to the R test result (AS D1329), it can be seen (FIG. 5) that when the clear content is 34%, the value of R10 increases with the increase of hydrogenation rate; when the content exceeds 40%, the value of R10 decreases with the increase of hydrogenation rate. The reason for this phenomenon is the crystallization of HNBR. The newly developed cold-resistant HNBR can not only inhibit the rise of glass transition temperature caused by hydrogenation, but also improve its heat resistance.

HNBR O Ring process flow

PO confirm---Develop mold according to drawing or sample---Develop chemical formula according to specifications---Mix the raw material as per formula---Prepare and Install the mold on the machine---Preform the rubber compound---Put the compound into mold and vulcanization with certain temperature and pressure---After a while, remove the goods from the mold---Trimming the flash---Inspection---Packing---Shipping

Small MOQ:Have variety HNBR O Ring in stock, so mini MOQ is acceptable.

Payment: T/T, L/C, Credit card. USD, RMB ,Euro and so on other currency is available.

Trade Term: EXW, FOB, CIF etc

Package: poly bag and carton(40*32*25CM). If you need pack by pallet or other customized package, it’s also ok.

Shipping method: By air, by sea, by express, multi-modal transport
