Products Description

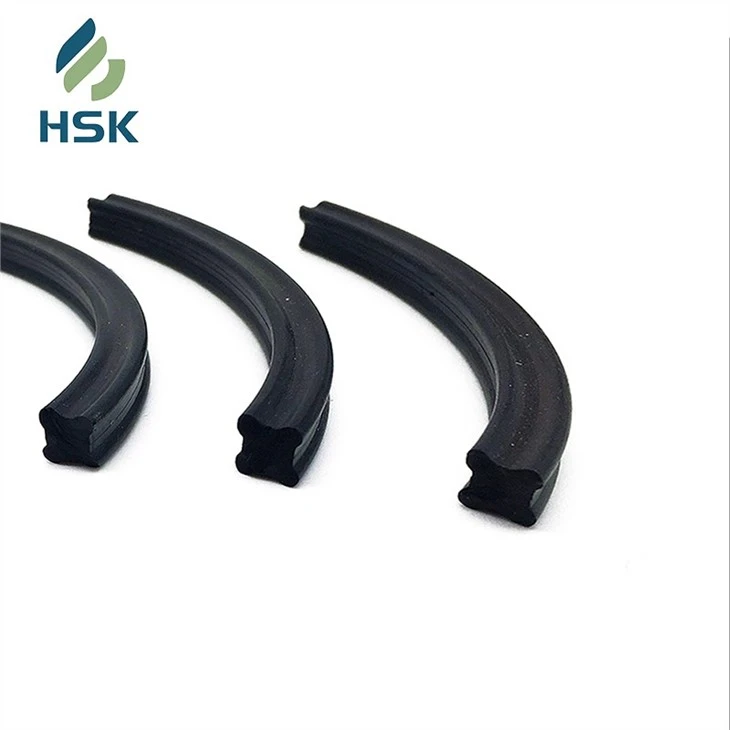

Molded Rubber X Ring is a seal that has similar functions to an O-ring. It can be installed in a special groove with a low compression ratio to reduce friction, and can also be used in the groove of an O-ring with the same specification. Its cross-section is approximately square, and its sealing performance is higher than that of a general seal ring structure. Its production materials are generally various synthetic rubbers, and the sealing is completed through the contact stress of the sealing interface. When the seal pressure increases, the compression of the star ring also increases, and the contact stress and contact area increase.

Molded Rubber X Ring seal ring has lower friction, can better overcome torsion, and can obtain a better lubrication effect. It can not only be used as a moving sealing element at a lower speed but is also suitable for static sealing. Since the sealing ring will form a lubricating chamber between the sealing lips, it has small friction resistance and starting resistance. Since the radial preloading required by the device is reduced, the contact stress is small and the friction force is small. In addition, the contact stress is evenly distributed under the working condition, so the leakage is small and the service life is long.

Details

PO confirm---Develop mold according to drawing or sample---Develop chemical formula according to specifications---Mix the raw material as per formula---Prepare and Install the mold on the machine---Preform the rubber compound---Put the compound into mold and vulcanization with certain temperature and pressure---After a while, remove the goods from the mold---Trimming the flash---Inspection---Packing---Shipping

Small MOQ: We have a variety of Molded Rubber X Rings in stock, so mini MOQ is acceptable.

Payment: T/T, L/C, Credit card. USD, RMB ,Euro and so on other currency is available.

Trade Term: EXW, FOB, CIF etc

Package: poly bag and carton(40*32*25CM). If you need pack by pallet or other customized package, it’s also ok.

Shipping method: By air, by sea, by express, multi-modal transport
